Upload your ISOs. AI does the takeoff.
Pipe Takeoff Pro's AI reads every isometric drawing in the set and builds an itemized, cross-checked bill of material, every line broken out by size, end, spec, rating and wall. Nobody counts fittings by hand. No software to buy or learn. Your estimators spend the week pricing the job.
| Item | Size | Spec | Qty |
|---|---|---|---|
| Pipe, BE | 6" | A106-B SCH 40 | 142 LF |
| 90° LR Elbow, BW | 6" | A234-WPB STD | 8 EA |
| Tee, Red. BW | 6"×4" | A234-WPB STD | 2 EA |
| WN Flange, RF | 6" | A105 CL300 | 4 EA |
| Gate Valve, RF | 6" | CL300 · tag unclear | 1 EA |
| Weldolet | 6"×1" | A105 3000# | 3 EA |
| Stud Bolt w/ 2 Hvy Hex Nuts | 3/4"×4-1/4" | B7 / 2H | 48 EA |
The counting is done by machine
A piping takeoff is line-by-line, sheet-by-sheet counting. That's the kind of work AI does well, and it's the part of the bid your estimators shouldn't be spending their week on.
Same care on every sheet
The AI reads the last drawing in a large set the same way it reads the first. It doesn't get tired or skip a line late in the week.
Checks its own count
Quantities taken off the drawing are checked against the bill of material on the same sheet, and anything that won't tie out is called out.
Says when it isn't sure
A smudged tag or unclear callout gets flagged for review. The AI doesn't fill a gap with a guess.
Set up by an estimator
The AI is set up to do a takeoff the way an industrial estimator does one, with the detail vendors need to price it.
Send drawings, get a workbook
Nothing to install and no new program to learn. Upload the drawings, the AI does the takeoff, and it comes back as a workbook your team can price from.

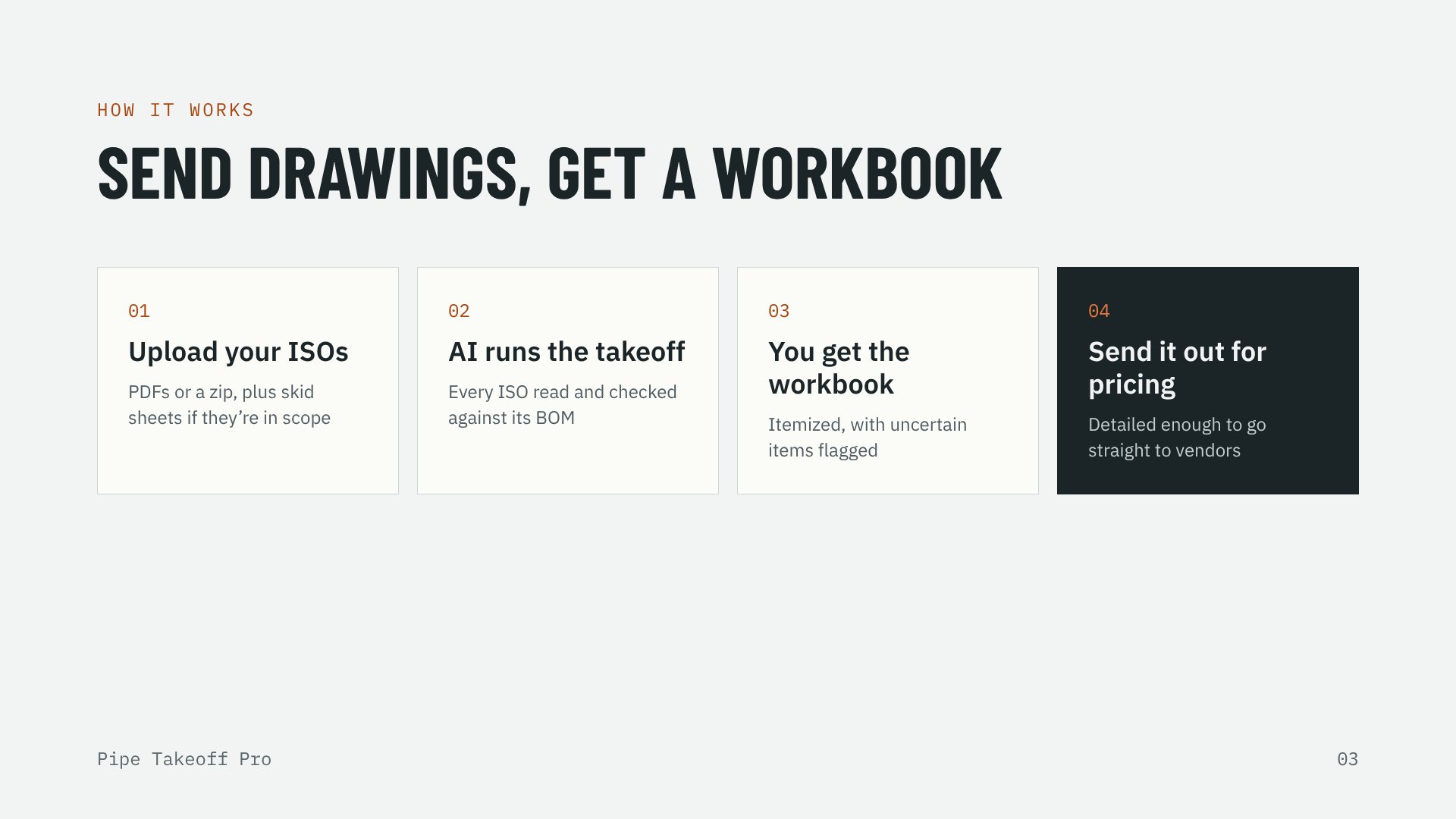

Upload your ISOs
PDFs or a zip, through the form below. Add skid or section sheets if they're in scope.
AI reads every drawing
Pipe, fittings, flanges, valves and bolting are taken off each isometric.
AI cross-checks the count
Drawing quantities are checked against the bill of material, and anything uncertain is flagged.
Get your workbook
An itemized takeoff, detailed enough to go straight to vendors for pricing.
Sample workbook with example data.
A takeoff you can price from

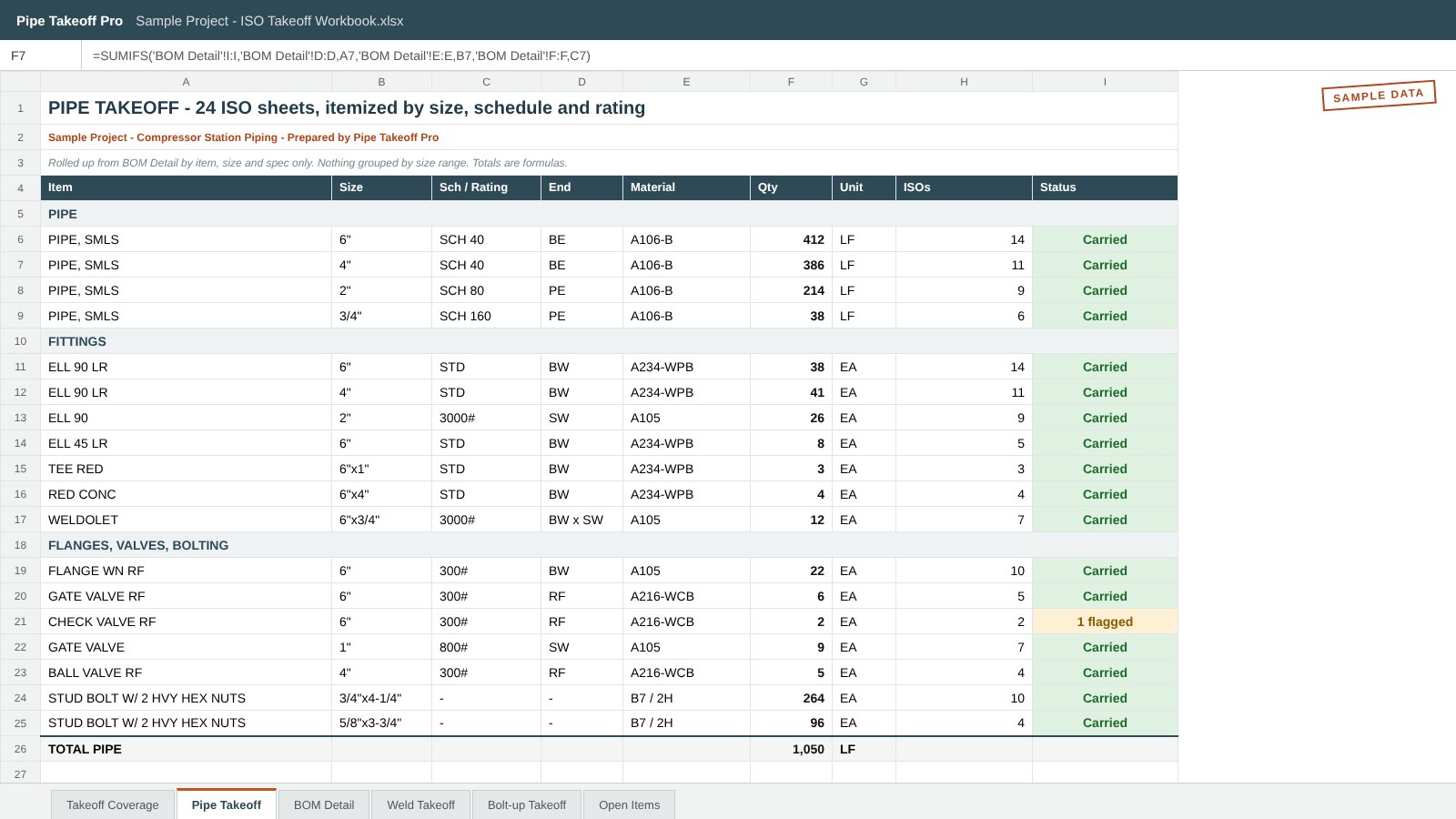

The workbook comes back laid out the same way on every job, so your estimators always know where to look.

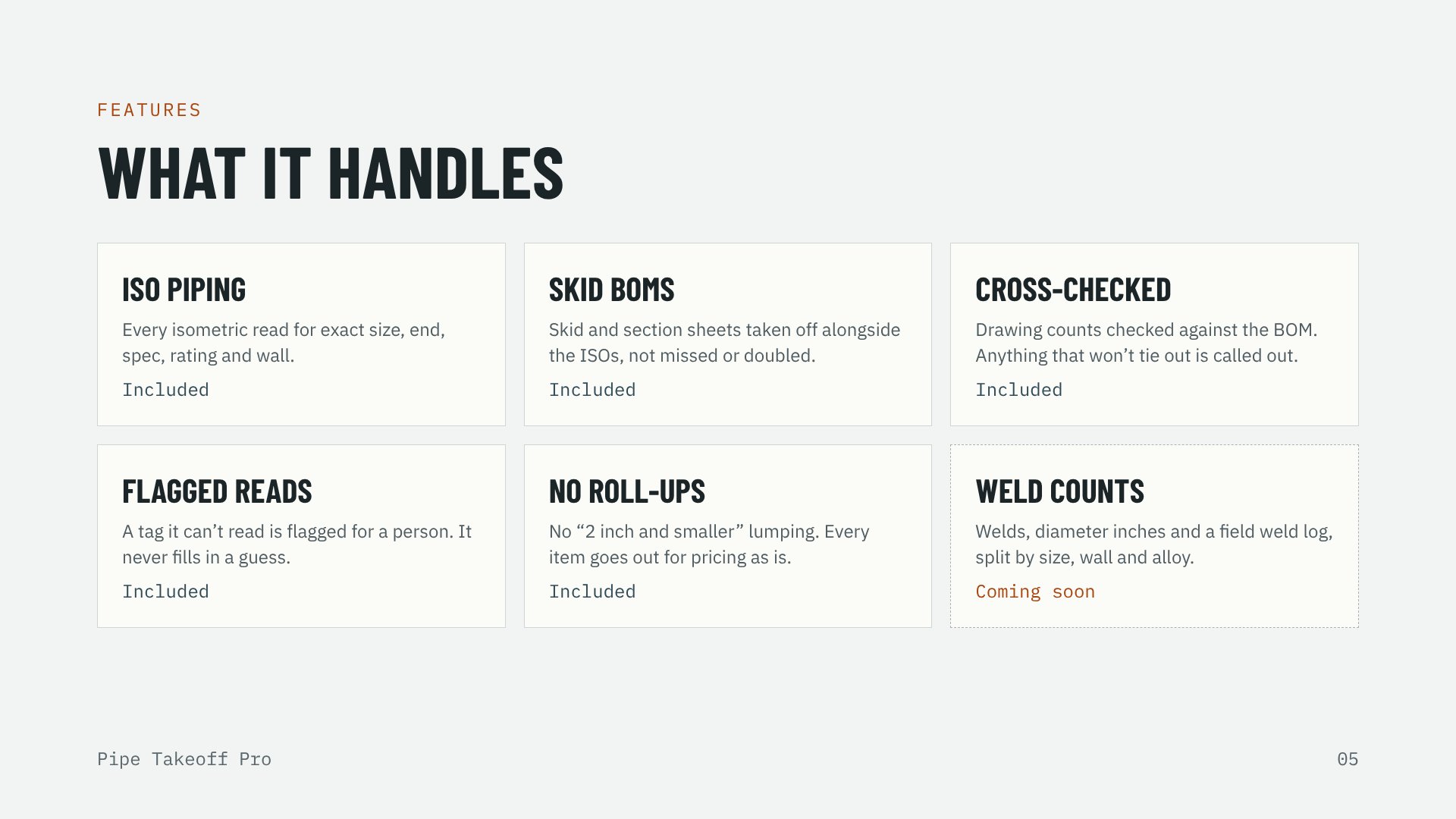

ISO piping

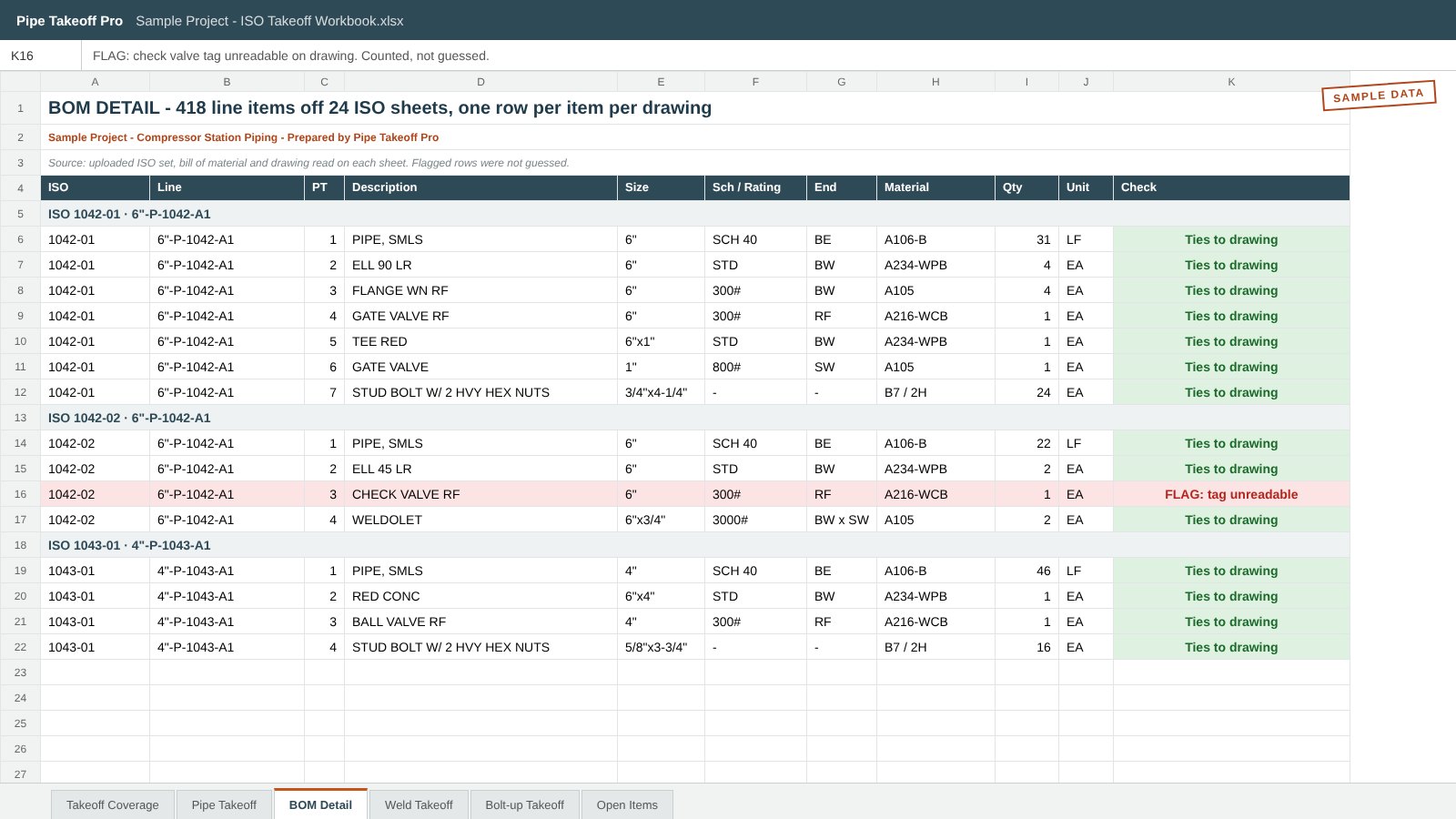

Every item on every isometric, with exact size, end connection, material spec, rating and wall.
IncludedSkid BOMs
Skid and section sheets taken off alongside the ISOs, so packaged equipment isn't missed or double counted.
IncludedCross-checked

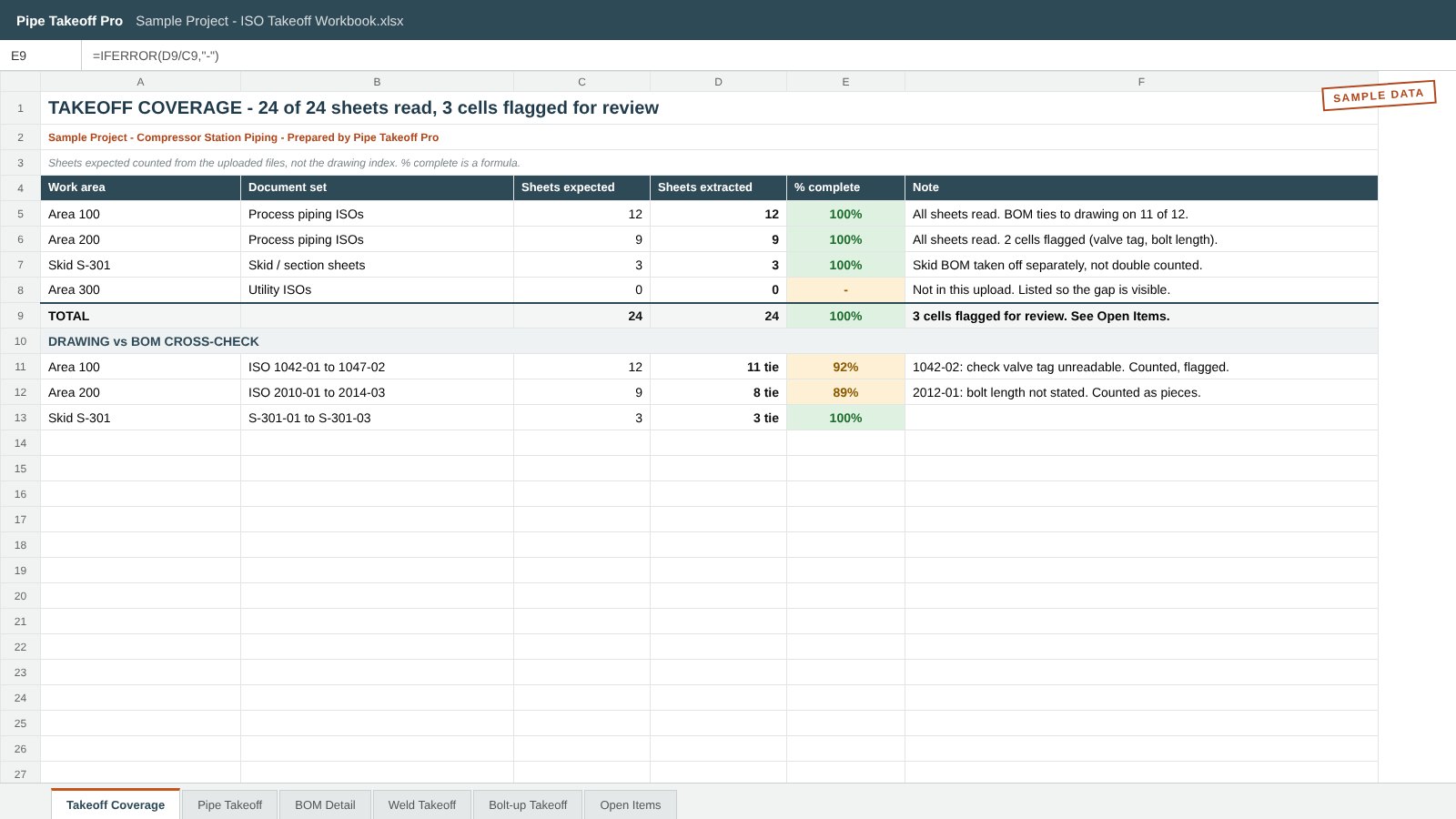

Drawing quantities are checked against the BOM on each sheet. Anything that won't tie out is called out.

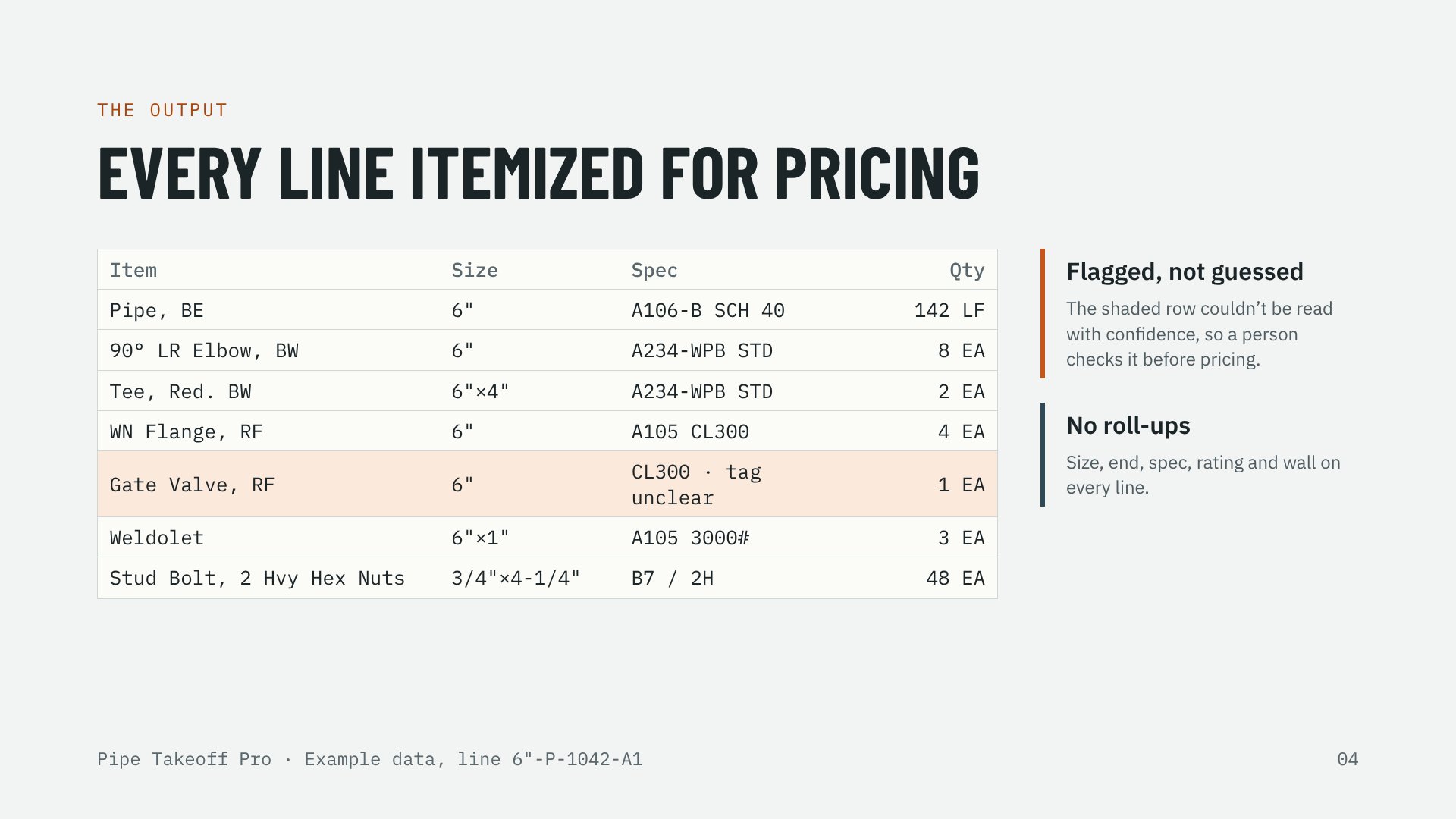

IncludedFlagged, not guessed
When the AI can't read a tag or callout with confidence, it flags the cell for review instead of filling in a guess.
IncludedNo roll-ups
No "2 inch and smaller" lumping. Every item stays itemized so it can go out for vendor pricing as is.
IncludedWeld counts
Weld counts, diameter inches and a field weld log from ISOs that don't carry a weld list, split by size, wall and alloy.
Coming soonThe service in four slides
How it works, what comes back, what's included and the other services available.
Try it free, then pay by the sheet
Pricing is per ISO sheet. Start with a free trial on one of your own jobs, pay as you go, or prepay a pack of sheets at a lower rate.
- A full takeoff on one of your own jobs
- Same workbook paying customers get
- One trial per company, company email required
- No commitment, pay per order
- Scope and price confirmed before work starts
- Rush turnaround: +[__]%
| Pack | Per sheet | Pack price | |
|---|---|---|---|
| 100 sheets | $[__] | $[__] | Buy |
| 250 sheets | $[__] | $[__] | Buy |
| 500 sheets | $[__] | $[__] | Buy |
| 1,000 sheets | $[__] | $[__] | Buy |
Sheets are drawn down as you upload jobs. Packs are good for [12] months. Need more than 1,000 a year? Ask about volume pricing.
Scope Review, ROM, E&I takeoff and estimating support are priced per job. Pick the service on the order form for a quote.

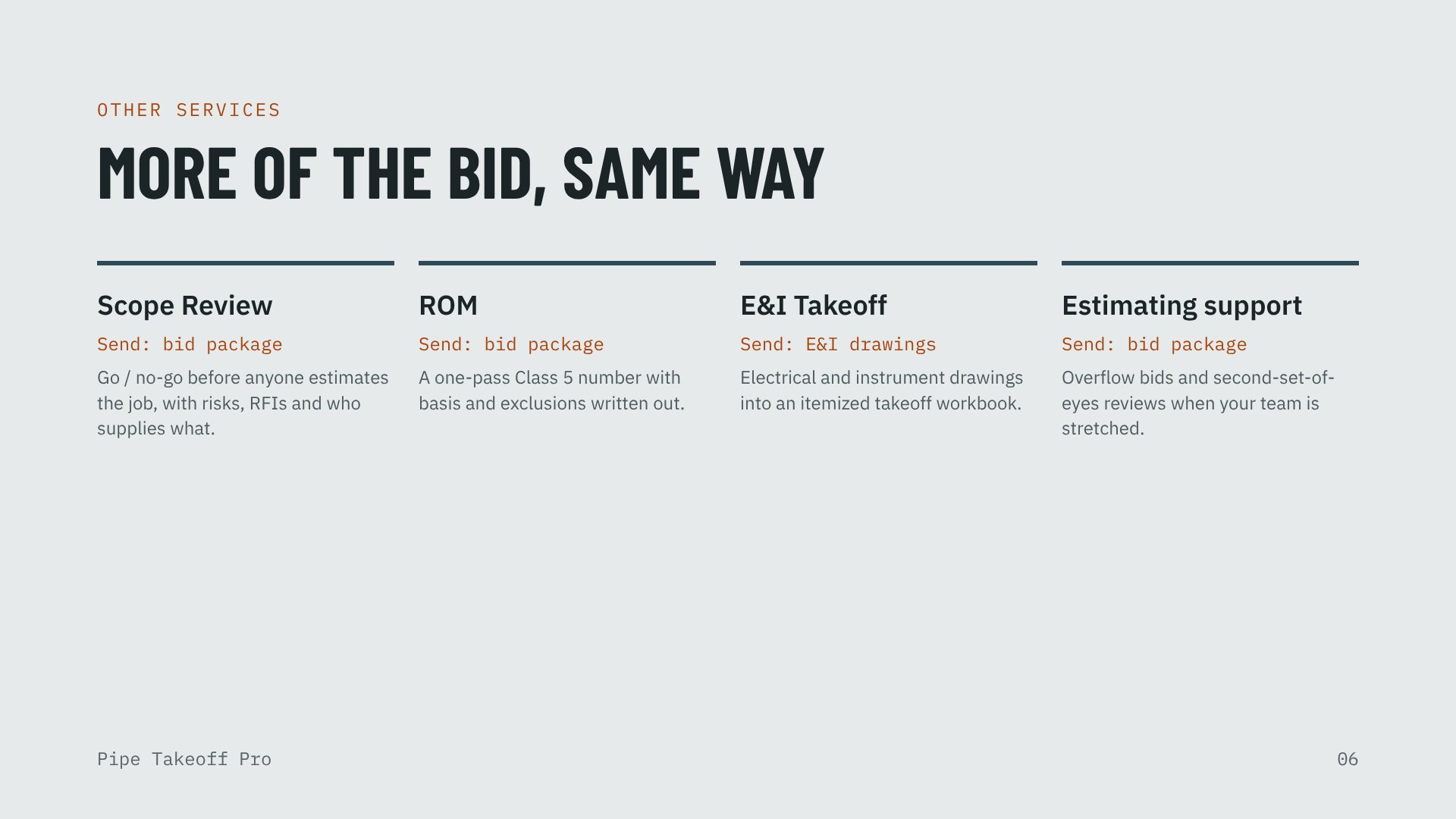

More of the bid, same way
